Versatile Custom MP75FD Blow Molding Machine with IML and Multiple Die Heads

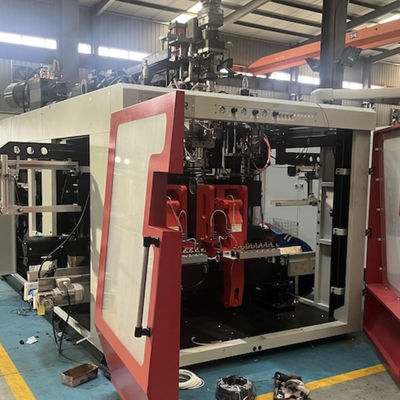

Gambar besar : Versatile Custom MP75FD Blow Molding Machine with IML and Multiple Die Heads

Detail produk:

Nama merek:	MEPER
Sertifikasi:	CE/ISO9001:2008
Model Number:	MP75FD

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1set
Harga:	Price Negotiation.
Packaging Details:	Standard Export Package
Delivery Time:	25-35 Work Days
Syarat-syarat pembayaran:	L/C,T/T
Supply Ability:	100 Sets Per Month

Kontak

Detil Deskripsi produk

Jenis terbelah:	Listrik	Fitur:	Botol Penghalang Tinggi
Dapat disesuaikan:	botol 0-5L	Diameter sekrup:	80mm
Nomor kepala mati:	1/2/3/4	Waktu garansi:	1 tahun
Kapasitas pemanasan sekrup:	6kw	Materi yang berlaku:	HDPE LDPE PP
Menyoroti:	custom blow molding machine with IML , automatic blow molding machine with multiple die heads , versatile MP75FD blow molding machine

Versatile Custom MP75FD Blow Molding Machine with IML and Multiple Die Heads

Product Overview

The Automatic Blow Moulding Machine is industrial equipment designed for efficient production of hollow plastic items including bottles, containers, jars, and tanks. The machine heats plastic material until pliable, then uses compressed air to expand it into the mould cavity shape, creating uniform hollow objects with high precision and consistency.

Key Features

Fully Automatic Operation: Reduces labor costs through automated preform loading, heating, blowing, and bottle ejection processes.
High Production Capacity: Multi-cavity design (2-12 cavities) supports output of 1,000-20,000 bottles/hour for medium to large-scale production.
Consistent Quality: Precise control of heating temperature, stretch ratio, and blowing pressure ensures uniform wall thickness and product strength.
Energy Efficient: Infrared heating system and servo-driven components minimize power consumption with zoned heating technology.
Flexible Production: Quick mold-switching system accommodates various bottle types (beverage, oil, cosmetic, pharmaceutical).
User-Friendly: PLC touchscreen interface with error diagnosis and automatic alarm system for easy operation and maintenance.
Wide Material Compatibility: Processes PET, HDPE, and PP materials for diverse container applications.
24/7 Operation: Designed for continuous production with seamless integration into filling and packaging lines.

Technical Specifications

PARAMETERS	MP75FD φ80
Material	PE PP
MAX container capacity (L)	0.1
Number of die (Set)	4
Machine dimension (L×W×H) (M)	3.6×2.2×2.36
Total weight (Ton)	5.5
Clamping force (KN)	120
Platen opening strokes (mm)	180-480
Toggle stroke (mm)	300
Max mould size (W×H) (mm)	460×450
EXTRUDER UNIT
Screw diameter (mm)	80
Screw L/D ratio (L/D)	24
(HDPE)plasticizing capacity (kg/h)	100
Screw heating zone (zone)	4
Screw heating power (kw)	15.85
Fan power (kw)	0.28
Extruder driving power (kw)	30
DIE HEAD
Die head heating zone (zone)	3
Power of die heating (kw)	8
ENERGY-CONSUMPTION
Power of the electric motor (kw)	11
Air pressure (Mpa)	0.6-0.8
Total power of machine (kw)	65.13
Average energy consumption (kw)	31
Compression air consumption (m3/min)	1.2
Cooling water consumption (L/min)	40

Industry Applications

Beverage Packaging

Production of PET bottles for water, juice, carbonated drinks, and tea beverages.

Primary market segment for PET bottles.

Food Packaging

Manufacturing bottles for edible oils, dairy products, and condiment containers.

Household & Personal Care

Production of detergent, shampoo, and cosmetic product containers.

Pharmaceutical Packaging

Bottles for medicines, supplements, and liquid medications.

Chemical & Industrial

Containers for lubricants, pesticides, and chemical reagents.

Medical & Healthcare

Sterile packaging solutions for disinfectants and medical sprays.

Custom Packaging

Specialized solutions for prototype bottles and premium cosmetic designs.

Customization Options

MEPER offers customized MP75FD Automatic Blow Moulding Machines with 1-4 die head configurations, including 4-cavity options for enhanced efficiency. The double-layer, electric-driven design produces high barrier bottles with CE and ISO9001:2008 certification. Minimum order quantity is 1 set with negotiable pricing, standard export packaging, and 25-35 work day delivery. Payment options include L/C and T/T with a monthly supply capacity of 100 units.
