Plastic Processing Machinery Extrusion Molding Machine for HDPE EVOH AD Material

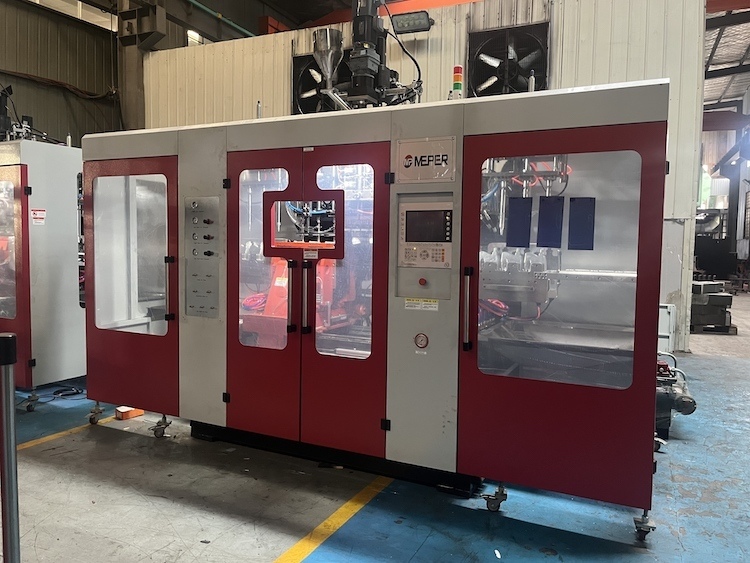

Gambar besar : Plastic Processing Machinery Extrusion Molding Machine for HDPE EVOH AD Material

Detail produk:

Nama merek:	MEPER
Sertifikasi:	CE/ISO9001:2008
Model Number:	80FD

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 Set
Harga:	negotiable
Packaging Details:	Standard Packaging
Delivery Time:	25-35 Work Days
Syarat-syarat pembayaran:	L/C,T/T
Supply Ability:	100 Sets Per Month

Kontak

Detil Deskripsi produk

PLC:	mitsubishi	Kata kunci:	mesin meniup botol hdpe
Keluaran HDPE:	85kg/jam	Materi yang berlaku:	HDPE + EVOH+IKLAN
Kekuatan penjepit:	120KN	Lapisan:	empat
Motor:	Siemens	Kapasitas Wadah:	500ml
Menyoroti:	HDPE EVOH extrusion molding machine , plastic processing extrusion machine , AD material plastic molding equipment

Plastic Processing Machinery Extrusion Molding Machine for HDPE EVOH AD Material

Product Description

An extrusion blow molding machine is specialized equipment for manufacturing hollow plastic objects. The process begins by melting plastic resins such as high-density polyethylene (HDPE), low-density polyethylene (LDPE), polypropylene (PP), or polyvinyl chloride (PVC).

The machine extrudes the molten plastic into a hollow tube (parison), which is then enclosed by a mold. Compressed air expands the parison to match the mold's shape. After cooling and solidification, the finished hollow product is ejected.

Key Features

Accommodates various hollow product sizes from small to large
Processes diverse plastic materials for flexible production
Produces durable thick-wall containers for demanding applications
Supports single-layer and multi-layer manufacturing (up to 6+ layers)
High-durability construction ensures stable, continuous operation
Available in single-station or double-station configurations

Technical Specifications

80FDE-4S(100)
SPECIFICATION	MATERIAL	PE
MAX CONTAINER CAPACITY	L	500ML
NUMBER OF DIE	set	4
MACHINE DIMENSION(LxWxH)	M	3.82x4x2.5
TOTAL WEIGHT	ton	8.6

Clamping Unit

CLAMPING FORCE	kN	120
PLATEN OPENING	mm	240-600
TOGGLE STROKE	mm	540
MAX MOULD SIZE (WxH)	mm	480x500

Extruder Unit

SCREW DIAMETER	mm	75
SCREW L/D RATIO	L/D	24
PLASTICIZING CAPACI(HDPE)	Kg/h	85
SCREW HEATING ZONE	zone	3
SCREW HEATING POWER	kW	15.3
FAN POWER	kW	0.14
EXTRUDER MOTOR POWER	kW	22

Applications

This extrusion blow molding machine produces various plastic containers including:

HDPE bottles for detergents, shampoos, and yogurt packaging
Motor oil and lubricant containers
Chemical and pesticide bottles
Large jerry cans (5-30 liter capacity)
Water and fuel tanks
Plastic toys and hollow objects (balls, floats, cones)

Frequently Asked Questions

Q1: What is the brand and model number of this extrusion molding machine?

A1: The extrusion molding machine is branded MEPER and the model number is 80FD.

Q2: Does this machine have any certifications?

A2: Yes, the MEPER 80FD extrusion molding machine is certified with CE and ISO9001:2008.

Q3: What is the minimum order quantity for the MEPER 80FD extrusion molding machine?

A3: The minimum order quantity is 1 set.

Q4: What are the payment terms available for purchasing this machine?

A4: Payment terms for the MEPER 80FD include L/C (Letter of Credit) and T/T (Telegraphic Transfer).

Q5: How long is the delivery time after placing an order?

A5: The delivery time for the MEPER 80FD extrusion molding machine is typically 25-35 work days.
